How do you measure up?
Finding the right size is the most crucial step to finding your perfect bike. With a couple of measurements you can use the charts below to find the Raptor for you. If you're not confident and would like some advice or a full bike fit, let's have a chat.
Step 1
Find a tape
Ideally a dressmakers tape a builder's tape will also be fine. Pop your cycling kit on. You'll also need a blank wall, pencil, book or spirit level, and ideally someone to help.
Step 2
Take your measurements
Stand with your heels firmly pressed into the base of the wall. Measure your height and your inner leg. Now repeat. Measure twice. Cut once.
Step 3
Find your size
Finding the right size bike is crucial. Locate your details on the guides below to find the bike size for you. If you'd like some assistance, Get in touch.
Two-point sizing system.

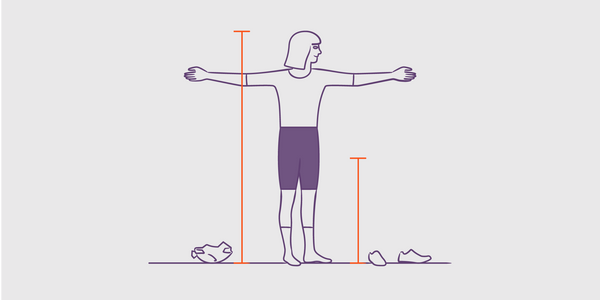

Our sizing system takes the guesswork out of finding the right bike size. It requires two measurements. Your height and your inner leg. Follow the steps below to take your accurate measurements.
Your height
- Stand with your back to a wall and place a spirit level or book on your head parallel to the floor.
- Measure from the floor to the book or spirit level.
- Make a note of your height measurement.
Your Inner leg
- To make things easier wear your cycling bibs or some well-fitting underwear and stand with your back to the wall.
- Pull the book or spirit level up between your legs as close as possible to your sit bones.
- Measure from the floor to the top of the book or spirit level.
- Make a note of your inner leg measurement.
This measurement significantly influences your frame size – please measure it accurately.

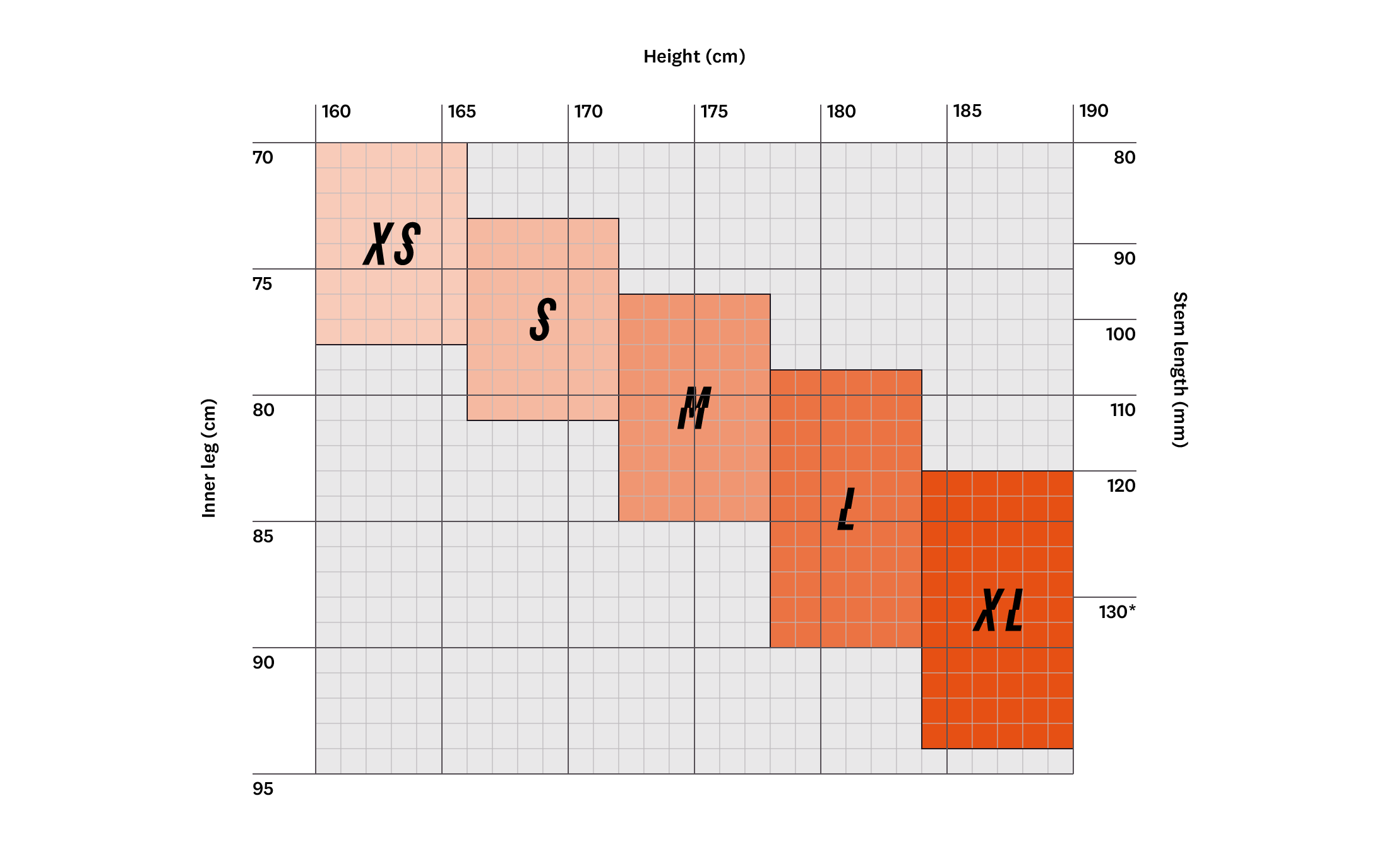

RL1 Size guide

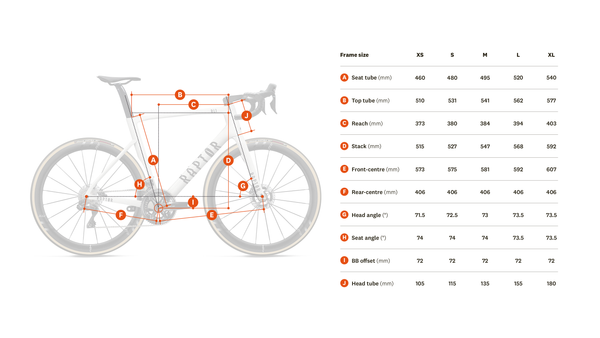

RL1 Geometry

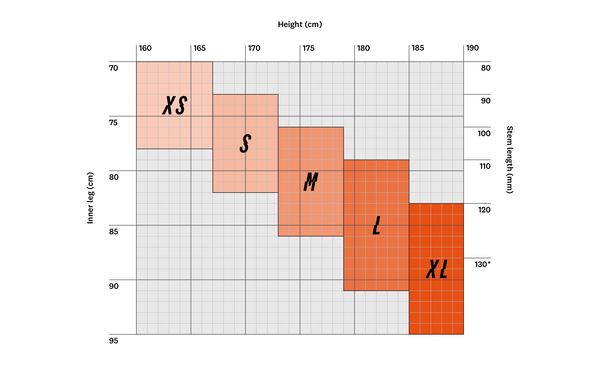

RS1 Size guide

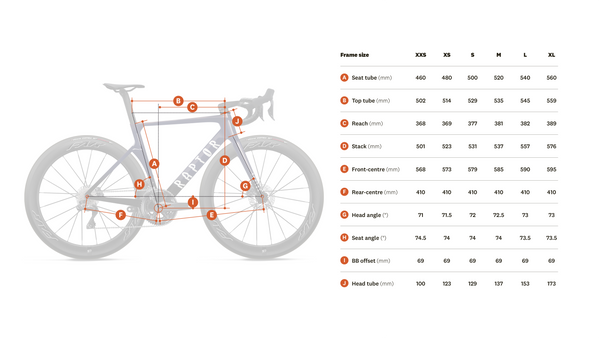

RS1 Geometry
Let's chat
Interested in a Raptor?
If you're still unsure on sizing, would like to look at the bikes in person or just want a chat bikes over a coffee, book an appointment with one of our founder's below. Together we'll work out what's right for you.
